parallel twin screw barrel from China manufacturer - Zhoushan Qunying Plastic Machinery Manufactory

Price:	1000.0~20000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QY-130315B

Production Capacity: 1000 sets per month

Delivery Date: 25 Days

Use: Others

Brand Name: QunYing

Base Material: 38CrMoAlA,DC5,D2,SACM645,ec...

Bimetallic Barrel Process: Centrifuge Casting

Surface roughness:: Ra0.4um

Application: Profile,PVC/PE/PP Granules/...

Desigh: As BAUSANO/KraussMaffei/Cin...

Means of Transport: Ocean,Land,Air

Packing: Wooden Case (Exported Stand...

Plastic Type: PVC

Shaft Design: Double

Power: 4-150KW

Bimetallic Screw Process: Spray Welding

Nitrided layer depth: 0.5-0.8mm

Bimetallic: Fe-based,Ni-based,Tungsten ...

End products: WPC, profile, pipe film etc...

Certificates: GB/T19001-2008/ISO9001:2008...

1.Bimetallic Parallel Twin Screw&Barrel/Cylinder
2.38CrMoAlA;42CrMo,SKD61...
3,Wc/co,Ni,Mo alloy,wearproof
4.Granule/foaming

parallel twin screw barrel for double screw extruder machines

For good plasticizing effect, we have different design of screw barrel to meet customer's demand:

gradual type, mutant type, wave type, barrier type, double screen type, shunt type, separation type, exhaust type, pin type, double-head type, multi head type etc

We also can customize according to clients' requirement.

Screw structure and compression ratio can be designed according to different products and raw material.

Base Materials:
1)38CrMoAlA(SACM 645)
2)42CrMo(AISI 4140)
3)Cr12MoV(SKD11)
4)4Cr5MoSiV1(SKD61)
5)9Cr18MoV
6)40Cr
Bimetallic Alloy Materials:
1)Fe-based alloy
2)Ni-based alloy
3)Co-based alloy
4)Tungsten carbide
Processing Technology:
Heat treatment
High-frequency quenching
Nitriding treatment
Hard-chrome electroplating
Bimetallic alloy welding
Bimetallic alloy centrifugal casting
Technical Parameter:

Nitrided layer depth:0.50-0.80mm
Nitrided hardness: 900-1100HV
Nitrided brittleness: Less than 2 level
Surface roughness: Ra 0.4
Linearity of screw: 0.015mm
Hard-chrome plating hardness after nitriding: ≥950HV
Chrome-plating layer depth: 0.025~0.10mm
Bimetallic layer depth: 2 mm
Bimetallic hardness: HRC50-65
Suitable Plastic Material:
PVC,SPVC,HPVC,PE,PP,XPS,ABS,PA,PC,POM,PMMA,PPO etc.

Our products advantages:
1)High productivity 2)Good plasticizing effect
3)Low energy consumption4)Wearable and durable
5)Wear resistance and Corrosion resistance
5)Fast and On time delivery 6)Best cusomer services!
Twin screw and barrel made: CINCINNATI, BATTENFELD, KRUSSMAFFEI, BAUSANO, AMUT model spares.

It is suit for PA.PP.PC.PE.ABS.AS.PS.PVC.PMMA.LCP.PBT.PET.PPC.PPS.PAR.PO.Magnetic powder, ceramic powder, aluminum powder, iron powder, wood flour and other engineering plastics, PVC, PE/PP WPC pelleting.

parallel twin screw barrel for double screw extruder machines

parallel twin screw barrel for double screw extruder machines

Application:

Our factory and equipment:

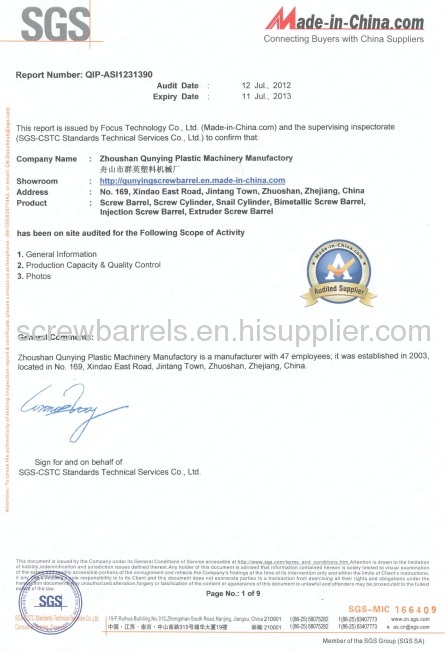

Our certificates:
parallel twin screw barrel for double screw extruder machines
