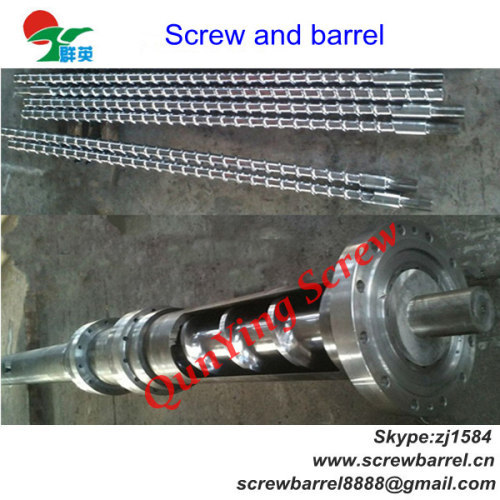

Bimetallic screw barrel extruder single extrusion screw barrel for PP/PE

Diameter of single screw : D15mm~D300mm

L/D: 12~45

Max. Length: less than 10000mm

Scope of application: pipe, film, profile, sheet, pvc pe/pew pc pelleting etc.

For good plasticizing effect, we have different design of screw & barrel to meet your requirements

Screw Type:

Gradient-type, mutant, wave type, barrier type, dual type, shunt type, separate type, exhaust type, pin type, mixed type, double-headed type, three-type, long type, grain type.

Material

Commonly used material is 38crMoAIA(nitrogen treatment),it can be changed as per your requirements. According to different usage, the choose for alloy is different, some require for abrasion-resistant while some require for corrosion-resistant. For standard, we have Fe-based, Ni-based, W2C alloy, Tungsten alloy etc for choice

Materials & Processes

Screw structure and compression ratio can be designed according to different products and mixtures

Technical Parameter

Single extruder bimetallic barrels with flange

Single extruder bimetallic screws with flange

Processing:

Factory Corners:
Plastic Application:

We could design for you for any Genneral plastic materials(such as PP PE ABS AS PS PC PET PA PVC PMMA TPU PU etc.)and Enginneering plastic materials(such as ABS+PC BMC LCP PPS PAR PA-6 PA-66 PA9T PA4T CPVC PVDF POM Glass fiber etc.)
