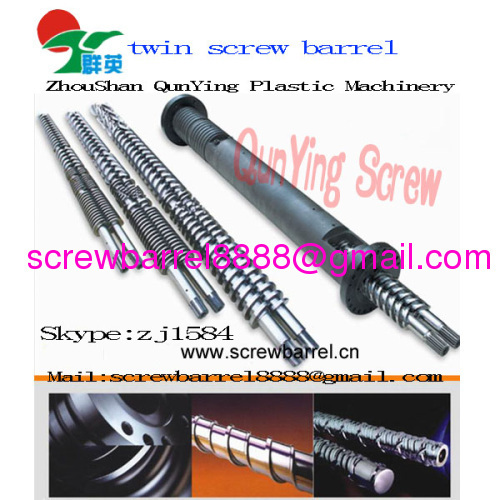

Plastic sheet extruder machine twin parallel screw barrel Cincinnati type parallel twin screw barrel

Specification:

Φ45/2, Φ60/2, Φ65/2, Φ70/2, Φ72/2, Φ75/2, Φ80/2, Φ85/2, Φ90/2, Φ93/2, Φ100/2, Φ105/2, Φ110/2, Φ115/2, Φ120/2, Φ125/2, Φ130/2, Φ140/2, Φ150/2, Φ160/2, Φ170/2, Φ180/2, Φ190/2, Φ200/2, Φ250/2

Above are our standard specification, we also can customize for you.

Screw structure and compression ratio can be designed according to different products and raw material.

1.Materials:38CrMoAIA (JIS SACM645)
2.Application:PVC,PE,PP

3.Depth of nitration case:0.5-0.8mm

4.Hardness of nitration: 950-1020HV

5.Fragility of nitration: Less than grade 1

6.Roughness of the surface:Ra 0.4um

7.Linearity of the screw:0.015mm

8.Chromium-plating layer thickness:0.03-0.08mm

9.The surface hard chromium plating hardness after nitrogenation:>=950HV

For good plasticizing effect,we have different design of screw&barrel to meet customers' demand.

Gradual type,mutant type,wave type,barrier type,double screen type,shunt type,separation type,exhaust type,mixed type,double-head type,three-head type,multi head type,etc.

Various high quality alloy steels, according to different usage, the choose for alloy is different, some require for abrasion-resistant while some require for corrosion-resistant. For standard, we have Fe-based, Ni-based, ^W2C alloy, Tungsten Carbide alloy etc for choice.

We can make any specification of extruder screw barrel and injection screw barrel for Haitian, Demag, Engle, Klaus-maffei, Nigro bossi, arburg,NPM, BOY, Husky, Fanuc, billion, Sumitomo, Nippon Steel, Toshiba, Nissei, Mitsubishi and etc. We also can supply all types of screw and barrel according to your different requirements.
