pelletizing screw and barrel from China manufacturer - Zhoushan Qunying Plastic Machinery Manufactory

Price:	100.0~10000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QY-PES1

Production Capacity: 1000 sets per month

Delivery Date: 25 Days

Brand Name: QunYing

Bimetallic Grade: Grade A/B/C

Application 2: ABS,PVC,PP/PE,PET,Engineeri...

Bimetallic Barrel Process: Centrifuge Casting

Hardness: Above HRC65

Power of Locknut: 100KN-3500KN

Means of Transport: Ocean,Land,Air

Packing: Wooden Case (Exported Stand...

Shaft Design: Single

Base Material: 38CrMoAlA,DC5,D2,SACM645,ec...

Application 1: Injection Moulding Machines

Bimetallic Screw Process: Spray Welding

Bimetallic Depth: 2~4mm

Capacity of Injection: 10G~30000G

1.High quality of Alloy steel
2.PP PE recycling pelletizing screw and barrel for plastic extrusion
3.Pellet,granulator

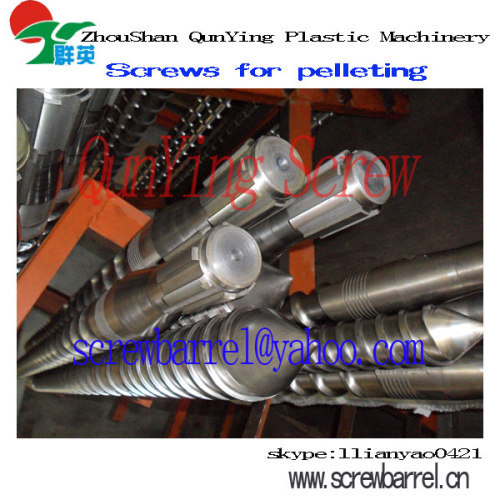

PP PE recycling pelletizing screw and barrel for plastic extrusion

For good plasticizing effect, we have different design of screw barrel to meet customer's demand: gradual type, mutant type, wave type, barrier type, double screen type, shunt type, separation type, exhaust type, pin type, double-head type, multi head type etc.

it is suit for PA.PP.PC.PE.ABS.AS.PS.PVC.PMMA.LCP.PBT.PET.PPC.PPS.PAR.PO.Magnetic powder, ceramic powder, aluminum powder, iron powder, wood flour and other engineering plastics, PVC, PE/PP WPC pelleting.

Q.Y. Single Screw And Barrel for Extrusion
Diameter: Φ 15-Φ 300mm
Technical Data:
Nitride Case Depth	0.5mm-0.8mm
Nitride Hardness	950-1120HV
Nitride Brittleness	≤Grade One
Surface Roughness	Ra0.4um
Screw Straightness	0.015mm
Alloy Hardness	HRC58-72
Alloy Depth	0.5mm-0.8mm
Chromium Coating Thickness	0.025~0.10mm

Raw Material	The Finnished Product Processing Requirments
38CrMoAla, SACM645	Nitriding Treatment
Cr12MoV, Cr12	Alloy Steel
38CrMoAla, SACM645,40Cr.AISI4140, 42CrMo	Alloy Steel
4Cr5MoSiV1, SKD-61, SKD-11	Bimetaiilc of the inner hole centrifugal casting
GH113	Nature hard after high temperature
