blow film screw barrel from China manufacturer - Zhoushan Qunying Plastic Machinery Manufactory

Price:	100.0~20000.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: QY-130316B

Production Capacity: 1000 sets per month

Delivery Date: 25 Days

Shaft Design: Single

Power: 4-150KW

Screw barrel Nitriding time: More Than 120 Hours

Chromiun-plating Depth: 0.15-0.2mm

Surface Roughness: Ra0.4um

Plastic Material Application: PP PE LDPE HDPE PMMA...ect.

Certificates: GBT 19001-2008/ISO9001:2008...

Means of Transport: Ocean,Land,Air

Packing: Wooden Case (Exported Stand...

Plastic Type: PP/PE

Brand Name: QunYing

Base Material: 38CrMoAlA,DC5,D2,SACM645,ec...

Screw Barrel Bimetallic Thickness: 2-4mm

Screw Barrel Hardness: HRC 56-65

For What Machine Screw Barrel Work: Blowing Moulding Machine

Product Application: Film,Bag,Bottle..ect

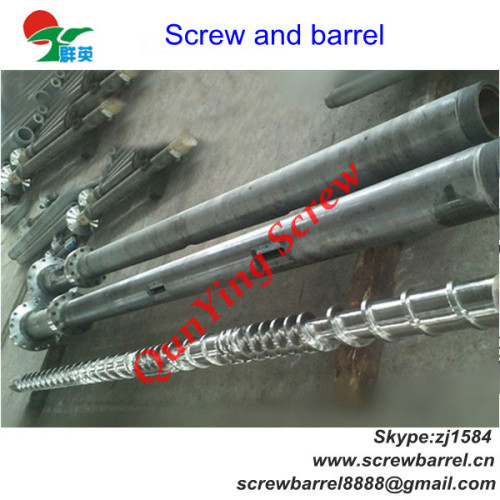

1.blow film machine screw barrel
2.Base Material:38CrMoAlA,42CrMo,SKD61,GH113,etc.
3.Certificates:GBT 19001-2008/ISO9001:2008/SGS

blow film machine screw barrel

Diameter of single screw : D15mm~D300mm

L/D: 12~45

Max. Length: less than 10000mm

Scope of application: pipe, film, profile, sheet, pvc pe/pew pc pelleting etc.

For good plasticizing effect, we have different design of screw & barrel to meet your requirements

Screw Type:

Gradient-type, mutant, wave type, barrier type, dual type, shunt type, separate type, exhaust type, pin type, mixed type, double-headed type, three-type, long type, grain type.

Material

Commonly used material is 38crMoAIA(nitrogen treatment),it can be changed as per your requirements. According to different usage, the choose for alloy is different, some require for abrasion-resistant while some require for corrosion-resistant. For standard, we have Fe-based, Ni-based, W2C alloy, Tungsten alloy etc for choice

Materials & Processes

SKD61(H13)	38CrMoAIA 41CrAMo7
Gr12MoV	High Quality Duplex Stainless Steel
42CrMo	High Quality Powder Metallurgy Materials
40Cr	Hard Metal Cold/Thermal Spraying Technology
Zinc 3# Steel	Advanced Nitriding Technology
Anti-corrosion and Wear-resisting Duplex Metal Spraying Technology

Screw structure and compression ratio can be designed according to different products and mixtures

Technical Parameter

Nitrided Case Depth	0.5mm-0.8mm
Nitrided Hardness	HV950-1020HV
Nitride Brittleness	≤Grade One
Surface Roughness	Ra0.4um
Screw Straightness	0.015mm
Alloy Hardness	HRC58-62
Alloy Depth	0.5mm-0.8mm
Chromium Coating Thicknss	0.15~0.20mm

blow film machine screw barrel

Bimetallic Alloy Materials	1)Fe-based alloy 2)Ni-based alloy/Deloro alloy 3)Co-based alloy 4)NiCo-based alloy 5)Tungsten carbide/Wolfram carbide
Double-alloy level	Level A - containing Tungsten of 40% Level B - containing tungsten of 25% Level C - containing tungsten of 9.5%

Bimetallic screw: Base material 38CrMoAlA, sprayed alloy powder on the screw flight, prolong life of screw.

Bimetallic barrel: Base material 40Cr, casted a 2-5mm wear resistant and corrosion resistant bimetallic layer

on the barrel inner wall, so it has much longer using life than nitrided barrel.

blow film machine screw barrel
We could design for you for any Genneral plastic materials(such as PP PE ABS AS PS PC PET PA PVC PMMA TPU PU etc.)and Enginneering plastic materials(such as ABS+PC BMC LCP PPS PAR PA-6 PA-66 PA9T PA4T CPVC PVDF POM Glass fiber etc.)
